Welded wire mesh

China Welded wire mesh supplier
Welded wire mesh supplier Welded wire mesh supplier Welded wire mesh supplier Welded wire mesh supplier

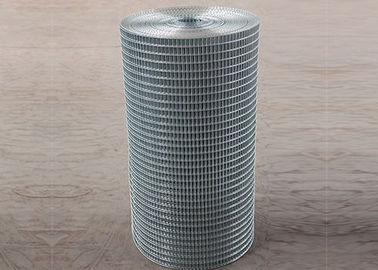

Large Image :  Welded wire mesh

Product Details:

Place of Origin: China
Brand Name: Hebei Shining
Certification: ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity: 50rolls
Packaging Details: Each roll wrapped by waterproof paper or plastic film.
Delivery Time: 30 days after get the advance
Payment Terms: T/T, L/C, D/P
Supply Ability: 10 containers within 30days
Contact Now
Detailed Product Description
Wire Diameter: BWG10 To BWG24 Material: Low Carbon Steel Wire
Surface Treatment: Galvanizing, PVC Coated Aperture: 1/2", 1/4",3/8",1" To 8"
Length: 15' To 100m Per Roll Width: 0.5m To 2.5m

Packaging Details:

Each roll wrapped by plastic film or waterproof paper, packed by pallet or according to customer's requirement.


Delivery Detail:

According to the quantity.



Strong welded points and bright luster .The mesh doesnt come loose even if cut in parts or being.
exerted force on parts .Compared with general iron wire ,the products are better in respects of anti-corrosive and anti-rust.



They are widely used in industry, agriculture, construction, transport and mining .Such as machine protection cover, ranch fender, garden fence, window protection fender, passage fender, fowl cage etc.


Surface treatment:

Hot-dipped galvanized, electro galvanized ,PVC coated, painted ,untreated.


Low carbon steel wire SAE1008, stainless steel wire etc .

Welded wire mesh


Welded wire meshWelded wire mesh


Welded wire mesh



The welded wire mesh can be used as poultry case, egg basket, passageway rail, waterspout, lobby.
guardrail, rodentresistant net, mechanical shield, livestock and plants guardrail and fences, industry.
agriculture, construction, transportation and mining industry, etc.



Specification List of Welded Wire Mesh
Opening Wire Diameter
In inch In metric unit(mm)
1/4" x 1/4" 6.4mm x 6.4mm 22,23,24
3/8" x 3/8" 10.6mm x 10.6mm 19,20,21,22
1/2" x 1/2" 12.7mm x 12.7mm 16,17,18,19,20,21,22,23
5/8" x 5/8" 16mm x 16mm 18,19,20,21,
3/4" x 3/4" 19.1mm x 19.1mm 16,17,18,19,20,21
1" x 1/2" 25.4mm x 12.7mm 16,17,18,19,20,21
1-1/2" x 1-1/2" 38mm x 38mm 14,15,16,17,18,19
1" x 2" 25.4mm x 50.8mm 14,15,16
2" x 2" 50.8mm x 50.8mm 12,13,14,15
2” x 4" 50.8mm x 101.6mm 12,13,14,15
4” x 4" 101.6mm x 101.6mm 12,13,14,15
4” x 6" 101.6mm x 152.4mm 12,13,14,15
6” x 6" 152.4mm x 152.4mm 12,13,14,15
6” x 8" 152.4mm x 203.2mm 12,13,14
Technical Note:
1,Standard roll length: 50ft, 100ft,etc ; width: 0.5m to 2.4m
2,Special sizes available at request
3,Packing: Waterproof paper or plastic film. Custom packing available at request.
